Weld Pad Gage Dimensions

Size & Weight

Example: RWA-27 (2 section, #7 glass) 22″ (559mm) Vis. Glass 23.5″ (597mm) O.A.L.	Gage Size		Visible Length		Overall Length		Glass C’Bore Length (G)		Weight
	# Sections	Nominal Glass Size	Inches	(mm)	Inches	(mm)	Inches	(mm)	lbs	(kg)
	1	1	3.75	95	5.25	133	4.56	116	10	4.5
	1	2	4.75	121	6.25	159	5.56	141	12	5.4
	1	3	5.75	146	7.25	184	6.56	167	13	5.9
	1	4	6.75	171	8.25	210	7.56	192	15	6.8
	1	5	7.875	200	9.375	238	8.69	221	17	7.7
	1	6	9.125	232	10.625	270	9.94	252	19	8.6
	1	7	10.25	260	11.75	298	11.06	281	21	9.5
	1	8	11.875	302	13.375	340	12.69	322	24	10.9
	1	9	12.625	321	14.125	359	13.44	341	25	11.3

	2	4	15	381	16.5	419	7.56	192	30	13.6
	2	5	17.25	438	18.75	476	8.69	221	34	15.4
	2	6	19.75	502	21.25	540	9.94	252	38	17.2
	2	7	22	*559*	23.5	*597*	11.06	*281*	42	*19.1*
	2	8	25.25	641	26.75	679	12.69	322	48	21.8
	2	9	26.75	679	28.25	718	13.44	341	50	22.7

	3	6	30.375	772	31.875	810	9.94	252	114	51.7
	3	7	33.75	857	35.25	895	11.06	281	126	57.2
	3	8	38.625	981	40.125	1019	12.69	322	144	65.3
	3	9	40.875	1038	42.375	1076	13.44	341	150	68.0

	4	7	45.5	1156	47	1194	11.06	281	84	38.1
	4	8	52	1321	53.5	1359	12.69	322	96	43.5
	4	9	55	1397	56.5	1435	13.44	341	100	45.4

	5	7	57.25	1454	58.75	1492	11.06	281	105	47.6
	5	8	65.375	1661	66.875	1699	12.69	322	120	54.4
	5	9	69.125	1756	70.625	1794	13.44	341	125	56.7

Inferno offers Rounded Corners on ends of welding pad to reduce stress risers and increasevessel integrity. Fabricators report faster installation time because there is nostart and stop at the four corners. Square corners are now optional.

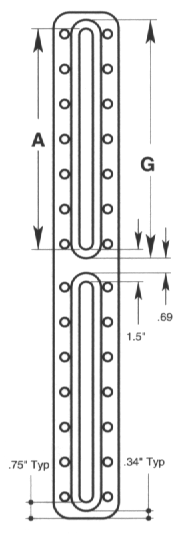

Window Length

Specify one or more cross ties to improve hoop strength of vessel — only appliesto full slot style.

Standard One Cross Tie Two Cross Ties

Gage Size		STANDARD no cross ties “A”
# Sections	Nominal Glass Size		in.	(mm)
1	1		3.75	95
1	2		4.75	121
1	3		5.75	146
1	4		6.75	171
1	5		7.875	200
1	6		9.125	232
1	7		10.25	260
1	8		11.875	302
1	9		12.625	321

2	4		6.75	171
2	5		7.875	200
2	6		9.125	232
2	7		10.25	260
2	8		11.875	302
2	9		12.625	321

3	6		9.125	232
3	7		10.25	260
3	8		11.875	302
3	9		12.625	321

4	7		10.25	260
4	8		11.875	302
4	9		12.625	321

5	7		10.25	260
5	8		11.875	302
5	9		12.625	321

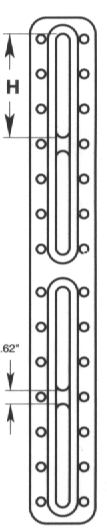

One Cross Tie

Gage Size		ONE CROSS TIE “H”
# Sections	Nominal Glass Size		in.	(mm)
1	1		1.56	40
1	2		2.06	52
1	3		2.56	65
1	4		3.06	78
1	5		3.62	92
1	6		4.25	108
1	7		4.81	122
1	8		5.62	143
1	9		6.00	152

2	4		3.06	78
2	5		3.62	92
2	6		4.25	108
2	7		4.81	122
2	8		5.62	143
2	9		6.00	152

3	6		4.25	108
3	7		4.81	122
3	8		5.62	143
3	9		6.00	152

4	7		4.81	122
4	8		5.62	143
4	9		6.00	152

5	7		4.81	122
5	8		5.62	143
5	9		6.00	152

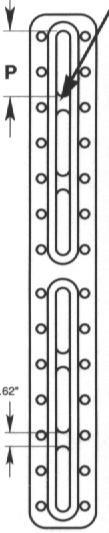

Two Cross Tie

Gage Size		TWO CROSS TIES “P”
# Sections	Nominal Glass Size		in.	(mm)
1	1		0.83	21
1	2		1.17	30
1	3		1.50	38
1	4		1.83	47
1	5		2.21	56
1	6		2.62	67
1	7		3.00	76
1	8		3.54	90
1	9		3.79	96

2	4		1.83	47
2	5		2.21	56
2	6		2.62	67
2	7		3.00	76
2	8		3.54	90
2	9		3.79	96

3	6		2.62	67
3	7		3.00	76
3	8		3.54	90
3	9		3.79	96

4	7		3.00	76
4	8		3.54	90
4	9		3.79	96

5	7		3.00	76
5	8		3.54	90
5	9		3.79	96
