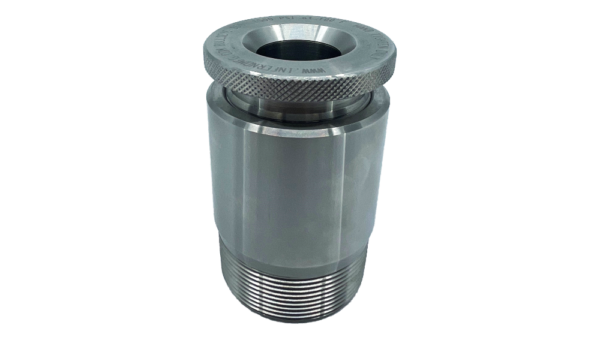

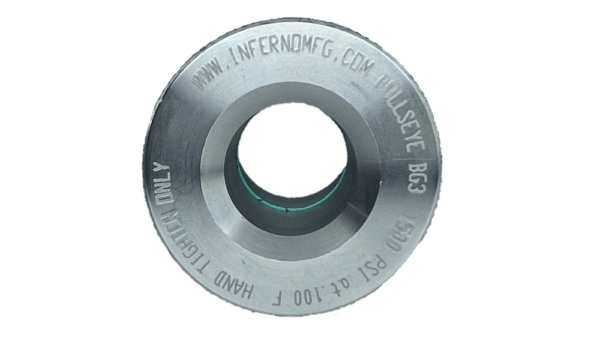

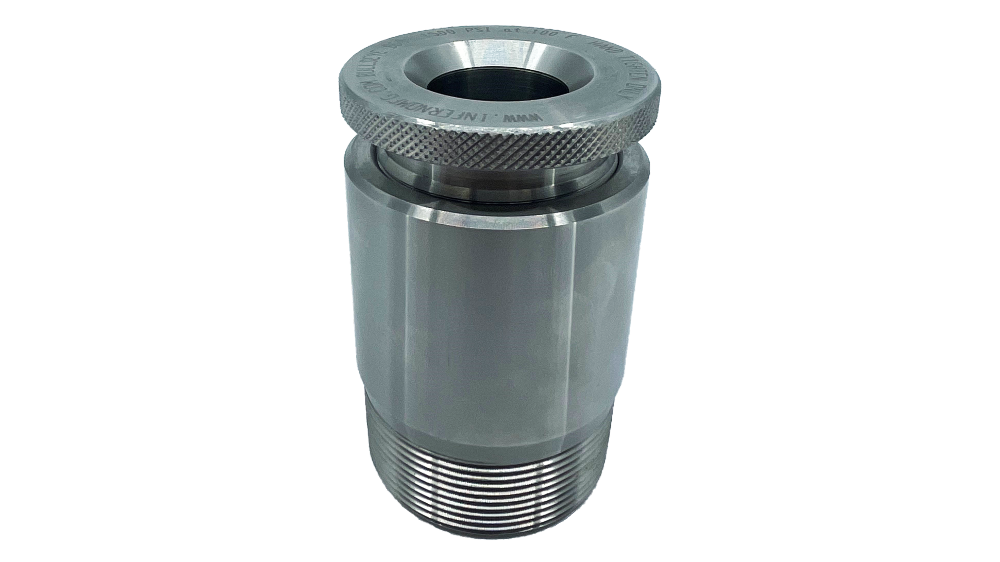

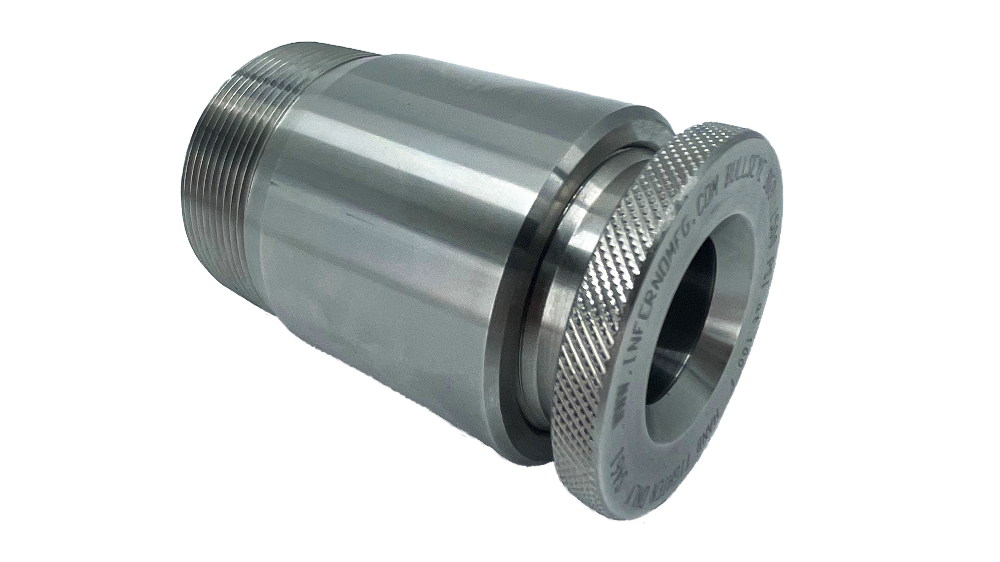

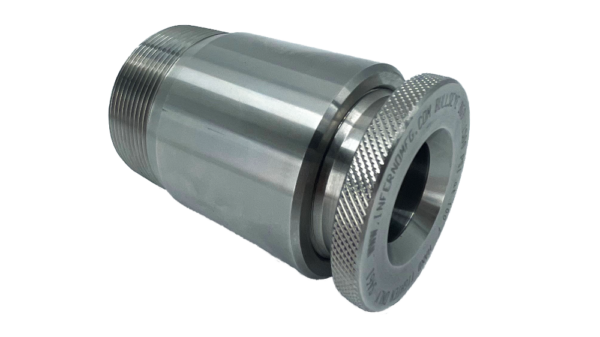

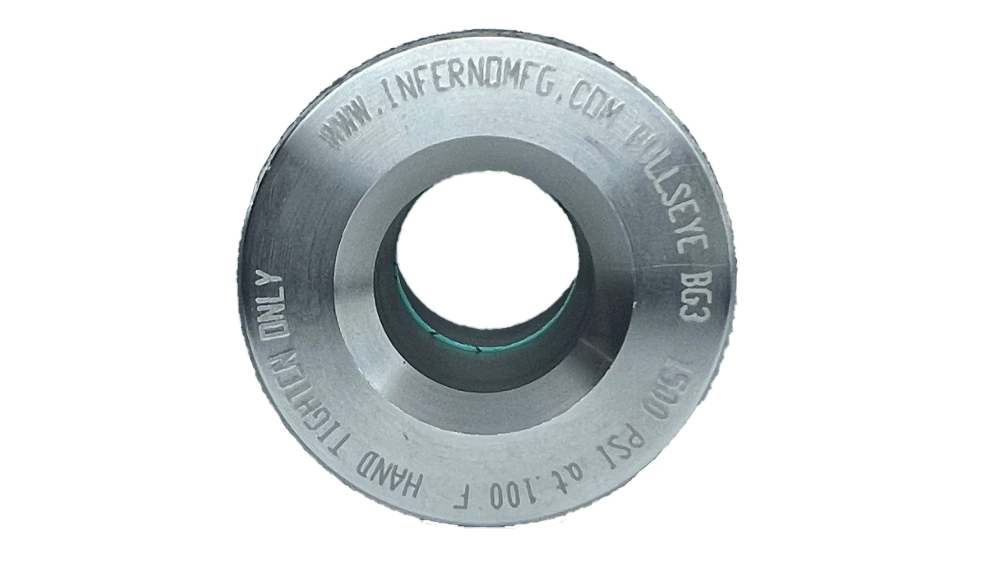

Bullseye Sight Glass

Inferno Bullseye sight glasses feature a large 1-1/8” diameter window which allows for visual inspection of processes within tanks and vessels.

Features

Body/Cap material: Available in zinc plated carbon steel or T316 stainless steel

Connections: Threaded: 1-1/2” & 2” M-NPT threads, Socket Weld: 1-1/2” & 2” NPS

Glass type: Tempered borosilicate

Seal material: Viton (FKM)

Specs

Rated 1500 PSI @ 100°F

Wetted meets NACE MR0175
